Uniview XVR301-08F 8 Channel Penta-brid XVR with HDMI & VGA Output
-
Reviews (0)
-
Sold: 0
- Shop More
Product Code: PRD-42445 - 80
Key Features
- Model: XVR301-08F
- Output: HDMI & VGA
- Input: 1x RJ45, 2x USB2.0
- Compatible: Up to 6TB for each HDD
- Outgoing Bandwidth: 64Mbps
Last Updated: 10 Jan, 2026
৳ 4,990.00
Quantity
Color
Details
Return policy: Eligible for Return, Refund or Replacement within 30 days of receipt Support: Free tech support included
| Audio and Video | ||
| IP Camera Input | 2-ch(only IP up to 10ch), each channel up to 6MP | |
| Display | ||
| Interface | 1x HDMI, 1x VGA | |
| Resolution | 1080P Lite/720P/D1 | |
| Decoding Capacity | Analog:8x 1080P Lite @15, 8x 720P @15 IP: 1 x 6MP@20, 2 x 1080P@30 | |
| Recording | ||
| Resolution | Main Stream: 1080P Lite Main stream: 720P | |
| Record Rate | Main Stream: 1080P Lite@15fps Sub stream: D1@12fps Main stream: 720P@15fps Sub stream:D1@15fps | |
| Bit Rate | Audio Sample Rate: 8KHz,16 bit per channel Audio Bit Rate: 64Kbps per channel | |
| Playback And Backup | ||
| Backup Mode | USB | |
| Network | ||
| Interface | 1x RJ45, 2x USB2.0 | |
| Storage | ||
| eSATA | Up to 6TB for each HDD | |
| Auxiliary Interface | ||
| USB | 2x USB2.0 | |
| Power | ||
| Power Supply | DC12V/2A | |
| Power Consumption | ≤ 10 W( without HDD ) | |
| Construction | ||
| Dimensions | 190mm × 202mm × 42mm (7.5" × 7.9" × 1.6") | |
| Gross Weight | ≤0.6 Kg ( 1.32lb ) | |
The Uniview XVR301-08F 8 Channel XVR is a compact and reliable video recording solution designed for small to medium surveillance systems. It supports penta-brid video inputs, allowing seamless integration of analog cameras and IP cameras with flexibility for future expansion. With support for up to 10 IP cameras and decoding capability up to 6MP, this XVR delivers clear and stable video performance.
Equipped with HDMI and VGA simultaneous output, the XVR301-08F provides convenient local monitoring options. It supports 1080P Lite and 720P recording, efficient bandwidth usage, and smooth playback. The device includes a single SATA interface supporting up to 6TB HDD, ensuring sufficient storage for continuous recording. Featuring USB backup, network access, and a compact low-power design, the Uniview XVR301-08F is an ideal choice for homes, shops, offices, and small commercial CCTV installations.
-
No reviews yet.
Products Related To This Item
CCTV Camera → XVR

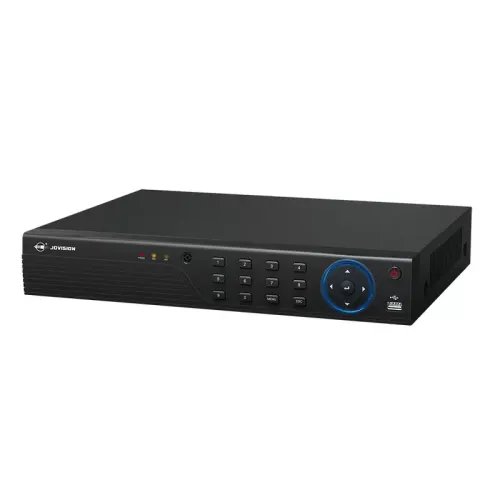

Jovision JVS-XD2832-HE20K 32 Channel 5-in-1 XVR with HDMI &...৳23,490.00
CCTV Camera → XVR

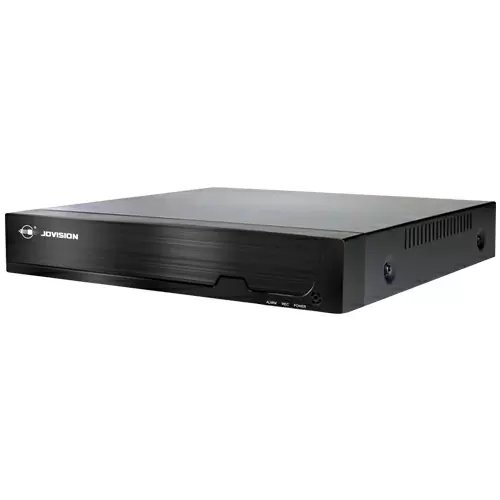

Jovision JVS-XD2716-FC10T 16 Channel 5-in-1 1080N XVR৳9,490.00
CCTV Camera → XVR
Jovision JVS-XD2608-FC10V 8 Channel 5-in-1 XVR with H.265৳7,090.00
CCTV Camera → XVR

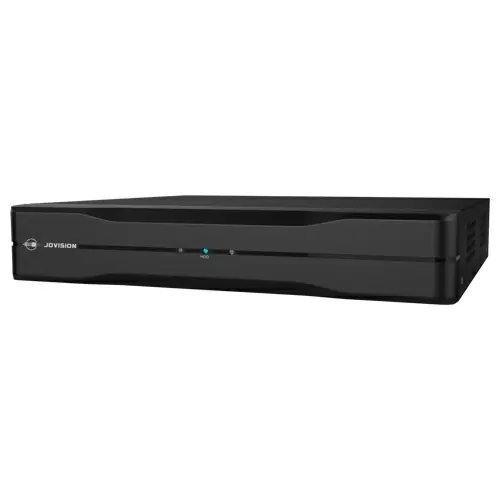

Jovision JVS-XD2604-FC10V 4 Channel XVR with H.265 & 8TB HDD...৳5,090.00
CCTV Camera → XVR

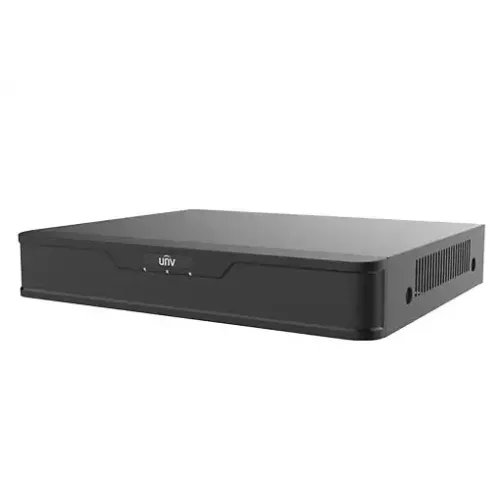

Uniview XVR301-08G3 8 Channel 5MP Lite Penta-brid XVR৳5,490.00
CCTV Camera → XVR
Uniview XVR301-04G3 4 Channel 5MP Lite XVR with HDMI & VGA O...৳4,230.00
CCTV Camera → XVR

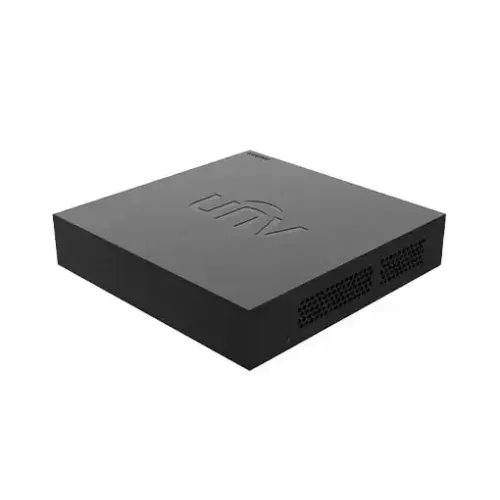

Uniview XVR301-04F 4 Channel XVR with HDMI & VGA Output৳2,890.00
CCTV Camera → XVR
Dahua XVR1B16-I 16 Channel Penta-brid AI XVR with H.265+৳5,990.00
CCTV Camera → XVR

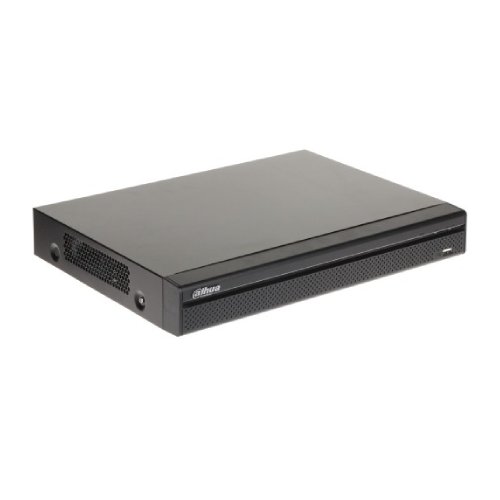

Dahua XVR1B04H-I 4 Channel Penta-brid 5M-N AI XVR Recorder৳4,490.00
CCTV Camera → XVR

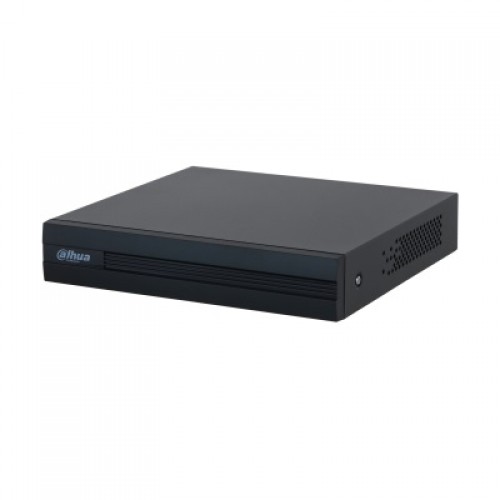

Dahua XVR1B08-I 8 Channel Penta-brid 1080N AI XVR৳3,130.00
