Hikvision DS-1H18-A 2MP 1080P CCTV Video Balun for HD Analog Cameras
-
Reviews (0)
-
Sold: 0
- Shop More
Product Code: PRD-23008 - 229
Key Features
- Model: DS-1H18-A
- Compatible with all HD-TVI/CVI/AHD/CVBS analog camera
- Wave Filter Design, Anti-Static Design
- Built-in solid state TVS, 60 dB crosstalk
- Real-time transmission over UTP cat5e/6
Last Updated: 17 Jan, 2026
৳ 250.00
Quantity
Color
Details
Return policy: Eligible for Return, Refund or Replacement within 30 days of receipt Support: Free tech support included
General
Brand: Hikvision
Model: DS-1H18-A
Product Type: CCTV Video Balun
Application: HD Analog CCTV Video Transmission
Compatibility
Supported Video Formats:
HD-TVI
AHD
CVI
CVBS
Supported Resolution:
720p / 1080p / up to 8MP
Transmission
Cable Type: UTP Cat5e / Cat6
Transmission Mode: Real-time video
Crosstalk Suppression: ≥ 60 dB
Impedance:
BNC Connector: 75 Ohm
UTP Connector: 100 Ohm (balanced)
Protection & Reliability
Wave Filter Design: Yes
Anti-Static Design: Yes
ESD Protection:
Level 3 (IEC61000-4-2)
Surge Protection:
2KV Common-Mode (IEC61000-4-5)
Built-in Protection: Solid-State TVS
Physical Specification
Connector Type:
BNC Male
UTP Terminal
Housing Material: ABS Engineering Plastic
Color: Black
Weight: Approx. 39 g
Environmental
Operating Temperature: -20°C to +55°C
Operating Humidity: Up to 95% (Non-condensing)
MTBF: ≥ 10,000 Hours
The Hikvision DS-1H18-A Video Balun is a high-performance transmission accessory designed for HD analog CCTV systems in Bangladesh. It allows real-time video transmission over UTP Cat5e/Cat6 cables, eliminating the need for traditional coaxial cables and reducing installation cost and complexity.
Fully compatible with HD-TVI, AHD, CVI, and CVBS analog cameras, this video balun supports resolutions from 720p up to 8MP, making it suitable for both legacy and modern surveillance systems. The advanced wave filter design ensures stable signal transmission with minimal interference, while over 60dB crosstalk suppression delivers clear and noise-free video.
Built with anti-static protection, solid-state TVS, and enhanced surge protection, the DS-1H18-A ensures reliable performance even in electrically noisy or harsh environments. Its compact and lightweight design makes it easy to install in DVR rooms, camera housings, or junction boxes. Ideal for homes, shops, offices, factories, and commercial CCTV installations across Bangladesh.
-
No reviews yet.
Products Related To This Item
CCTV Camera → CCTV Accessories

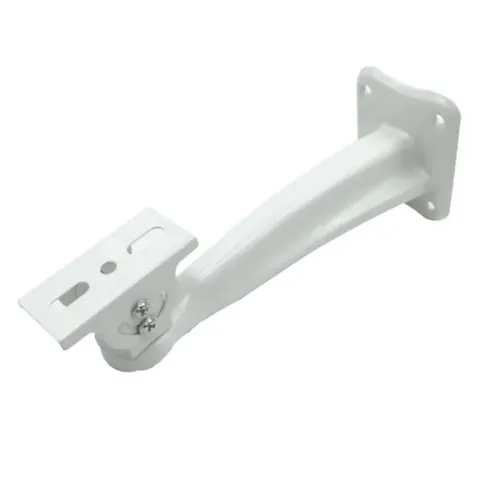

CC Camera Stand 10 Inch Wall and Ceiling Mount for IP Camera৳280.00
CCTV Camera → CCTV Accessories

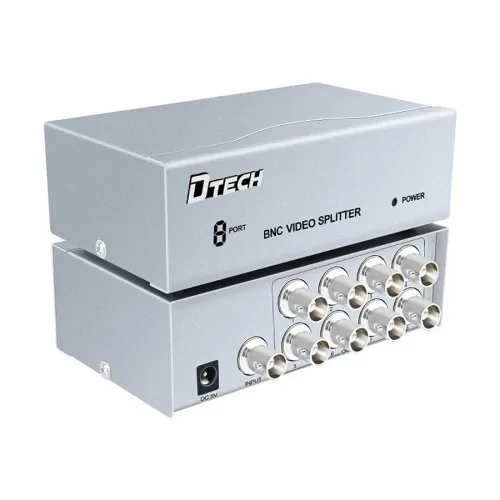

Dtech DT-7108 8 Port BNC Splitter for CCTV Camera Video Dist...৳1,430.00
CCTV Camera → CCTV Accessories

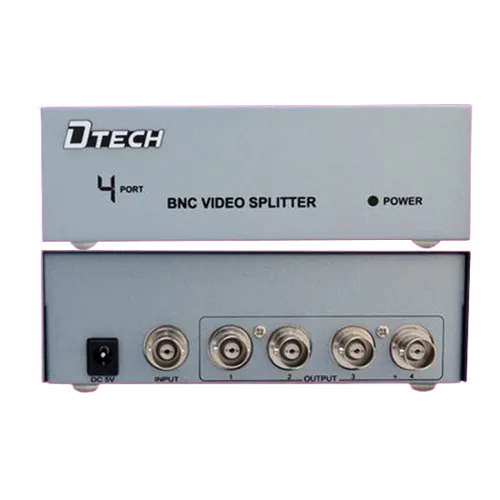

Dtech DT-7104 4 Port BNC Splitter for CCTV Camera Video Dist...৳1,350.00
CCTV Camera → CCTV Accessories
12V 2A Box Waterproof Power Adapter for CCTV Camera AC DC Ad...৳300.00
CCTV Camera → CCTV Accessories

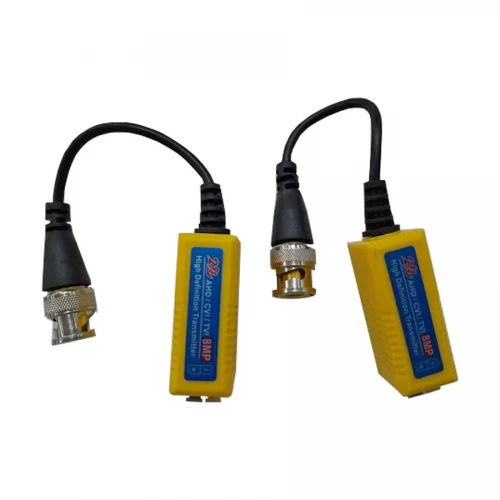

AHD/CVI/TVI 720P/1080P (2MP) Video Balun for CC Camera৳250.00
CCTV Camera → CCTV Accessories

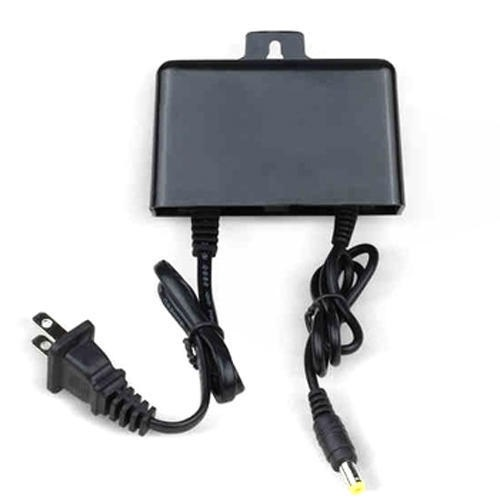

12V 2A Outdoor Waterproof CCTV Power Adapter – High Stabilit...৳480.00
