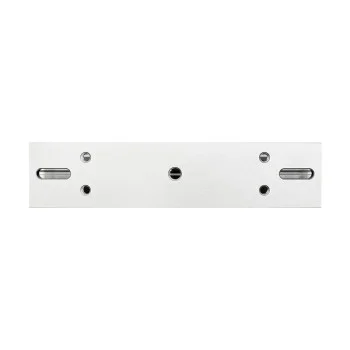

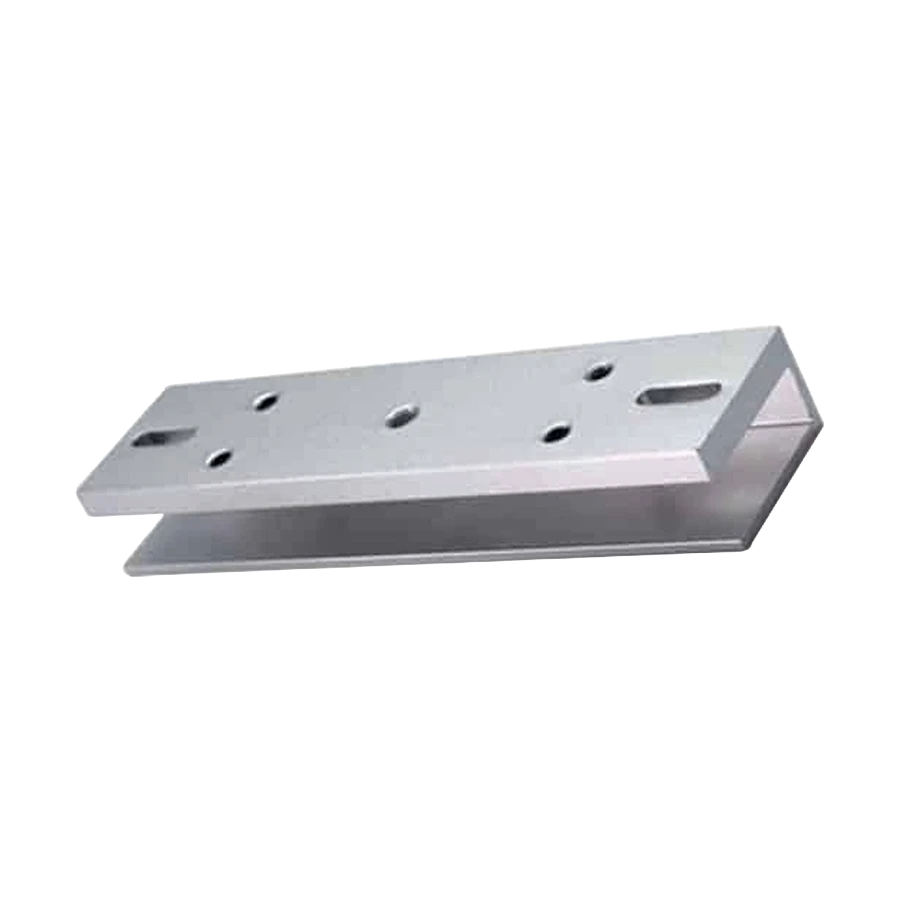

Nexakey NX-280U U Magnetic Door Lock Bracket-
-
Reviews (0)
-
Sold: 0
- Shop More
Product Code: PRD-63797 - 838
৳ 790.00
-
Category
Security System -
Sub Category
Door Lock (Magnetic & Electric) -
Brand
Nexakey
Key Features
- Frameless
Glass Specialization: Engineered specifically to install standard 280kg
(600 lbs) magnetic lock armature plates onto frameless glass doors.
- Drill-Free
Installation: Clamps firmly onto the glass using tight tension screws,
requiring zero drilling or cutting through the delicate tempered
glass.
- Adjustable
Glass Thickness: Fully compatible with a wide variety of commercial
glass door profiles ranging from 10mm to 15mm in thickness.
- Glass
Protection Engineering: Equipped with specialized internal rubber
spacers that prevent direct metal-to-glass contact, completely protecting
the door from scratches or fracturing.
- High-Strength
Aluminum Base: Milled from premium, high-strength aluminum alloy
to withstand constant physical pulling without bending or warping.
- Sandblast
Anodized Finish: Features a durable sandblast surface treatment that
provides maximum rust resistance and a modern, professional matte silver
look.
- Universal
Lock Compatibility: Perfectly tailored to fit Nexakey 280kg locks,
VIANS series, and all other industry-standard 280kg electromagnetic locks.
Last Updated: 17 Oct, 2026
৳ 790.00
Quantity
Color
Details
Return policy: Eligible for Return, Refund or Replacement policy
Nexakey NX-280U - Technical Specifications
| Product Model | Nexakey NX-280U |
|---|---|
| Bracket Architecture | Heavy-Duty U-Type Clamping System |
| Magnetic Lock Rating | Designed for Standard 280kg (600 lbs) Electromagnetic Locks |
| Primary Material | High-Strength Aluminum Alloy |
| Surface Finish | Sandblast Anodized Finish (Anti-Rust and Fingerprint-Resistant) |
| Target Door Structure | Frameless Glass Doors Only |
| Compatible Glass Thickness | 10mm to 15mm Tempered Glass |
| Installation Method | Direct Edge-Clamp Installation; No Drilling or Glass Fabrication Required |
| Core Integration | Armature Plate Mounting Core |
| Product Dimensions (L × W × H) | 180 × 40 × 25 mm |
| Net Weight | Approximately 0.40 kg |
Nexakey NX-280U U Magnetic Door Lock Bracket for Frameless Glass Doors
The Nexakey NX-280U U Magnetic Door Lock Bracket is a durable and reliable mounting solution designed for installing compatible electromagnetic locks on frameless glass doors. Engineered for modern commercial and corporate environments, this U-bracket supports a clean, professional installation while helping protect glass surfaces from direct metal contact.
Designed for compatible 280kg (600 lbs) electromagnetic door lock systems, the NX-280U is suitable for offices, corporate entrances, conference rooms, commercial buildings, and other access control applications requiring a frameless glass door mounting solution.
Key Features and Benefits
- Designed for Frameless Glass Doors: Provides a dedicated mounting solution for compatible electromagnetic locks on frameless glass doors without requiring direct drilling into the glass.
- Protective Rubber Padding: Internal protective pads help reduce direct metal-to-glass contact and minimize the risk of scratches or surface damage during installation.
- Compatible Glass Thickness: Designed for glass thicknesses of approximately 10mm to 15mm, subject to the manufacturer's specifications and installation requirements.
- Durable Aluminum Alloy Construction: Made from high-strength aluminum alloy to provide a sturdy and dependable mounting structure for compatible access control hardware.
- Modern Anodized Finish: Features a sandblasted anodized finish that offers a clean, professional appearance and helps protect the surface against corrosion and everyday wear.
- Wide Magnetic Lock Compatibility: Suitable for compatible 280kg electromagnetic locks, including supported Nexakey and VIANS models, subject to bracket dimensions and manufacturer compatibility.
- Professional Access Control Installation: Ideal for commercial frameless glass doors in offices, meeting rooms, retail spaces, and other controlled-entry environments.
Recommended Applications
- Corporate offices and business premises
- Frameless glass entrance doors
- Conference rooms and executive boardrooms
- Commercial buildings and retail storefronts
- RFID, fingerprint, keypad, and other access control installations
Why Choose the Nexakey NX-280U?
The Nexakey NX-280U combines practical glass-door mounting, durable construction, and a modern architectural finish in one professional accessory. It helps simplify compatible electromagnetic lock installations while maintaining the clean appearance of frameless glass entryways.
Important: This product is a mounting bracket, not a standalone electromagnetic lock. Please verify the glass thickness, bracket dimensions, door configuration, and magnetic lock compatibility before purchase. Actual holding force depends on the compatible magnetic lock, not the bracket alone.
-
