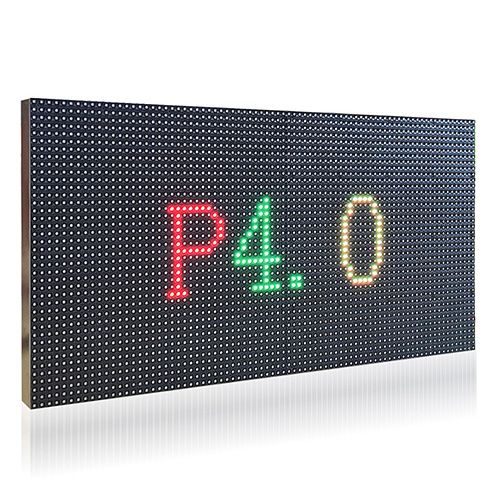

P4 LED Display High Brightness 4mm Pixel Pitch Indoor LED Screen
-
Reviews (0)
-
Sold: 0
- Shop More
Product Code: PRD-90686 - 239
Key Features
- Pixel Pitch: 4mm
- Module Size: 320*160*15mm
- Resolution: 80*40dps
- Horizontal View Angle: 160 Deg.
- Verticle View Angle: 140 Deg.
Last Updated: 29 Jan, 2026
৳ 8,500.00
Quantity
Color
Details
Return policy: Eligible for Return, Refund or Replacement within 30 days of receipt Support: Free tech support included
| LED Lamp Specification | ||||||
| Color | Package | Intensity | Viewing angle | Wavelength | Testing condition | |
| Red | 3 IN 1 SMD | 70-100mcd | 160°/140° | 620-625nm | 25℃,20mA | |
| Green | 120-200mcd | 160°/140° | 515-530nm | 25℃,10mA | ||
| Blue | 30-40mcd | 160°/140° | 465-475nm | 25℃,5mA | ||
| Module Parameter | ||||||
| Pixel Pitch | P4mm | |||||
| Pixel Strcture | 3 IN 1 SMD | |||||
| Density | 62500pixels/㎡(real pixel) | |||||
| Module Resolution | 80pixel(L) * 40pixel(H) | |||||
| Module Dimension | 320mm(L) * 160mm (H) * 15mm(D) | |||||
| Cabinet Dimension | 320*160mm | |||||
| Cabinet Weight | .5 (kg) | |||||
| Single Point Brightness, Chroma Correction: Support | ||||||
| White Balance Brightness | ≥5000 cd/㎡ | |||||
| Viewing Angle | 160°(Horizontal)； 140°(Vertical) | |||||
| Best Viewing Distance | ≥8+m | |||||
| Color Tempareture | 2000K-12500K (adjustable) | |||||
| Display Color | 68.7 Billion Color | |||||
| Brightness Uniformity | ≥97% | |||||
| Contrast Ratio | ≥5000:1 | |||||
| Process Performance | ||||||
| Single Processing bits | 16bits*3 | |||||
| Gray Scale | 12-16Bit | |||||
| Control Distance | Cable:100m, Optical Fiber:10KM | |||||
| Drive Mode | Constant current source driver | |||||
| Frame rate | ≥60Hz | |||||
| Refress rate | 1920-3840Hz | |||||
| Way to control | Synchronize | |||||
| Brightness adjustment range | 0-100 Stepless | |||||
| Brightness Correction | Pixel by pixel, module by module, cabinet by cabinet | |||||
| User Paramiter | ||||||
| Working Temperature | -20～+50 ºC | |||||
| Stored Temperature | -30～+60 ºC | |||||
| Working Humidity | 10%～80% RH | |||||
| Lifetime | 100,000 hours | |||||
| MTBF | 5000 hours | |||||
| Continuous Working Time | ≥60 hours | |||||
| IP Protection Grade | Front IP65, Back IP120 | |||||
| Out of Control Pixel Rate | ≤0.01% | |||||
| Electricity Parameter | ||||||
| Operating Voltage | DC 4.5-5V | |||||
| Power Requirements | AC 220 x (1±10%)V, 50x(1±10%)Hz | |||||
| Max. Power Consume | 850w/m2 | |||||
| Average Power Consume | 300w/m2 | |||||
The P4 LED Display is a high-resolution digital display solution designed for indoor and outdoor visual communication. Featuring a 4mm pixel pitch, this LED screen delivers sharp images, vibrant colors, and smooth video playback even at close viewing distances. With high brightness up to 5000 nits and a wide viewing angle, it ensures excellent visibility in daylight and low-light environments.
Built with advanced SMD LED technology, the P4 LED display offers stable performance, long lifespan, and energy efficiency. Its fast refresh rate ensures flicker-free content, making it ideal for advertising screens, conference halls, shopping malls, control rooms, events, and stage backdrops. The modular design allows flexible screen sizes and easy maintenance.
The P4 LED display supports long control distances via network cable or optical fiber, ensuring reliable signal transmission for large installations. With strong contrast, accurate color reproduction, and durable construction, it is a dependable choice for professional LED display applications.
-
